1、开始使用

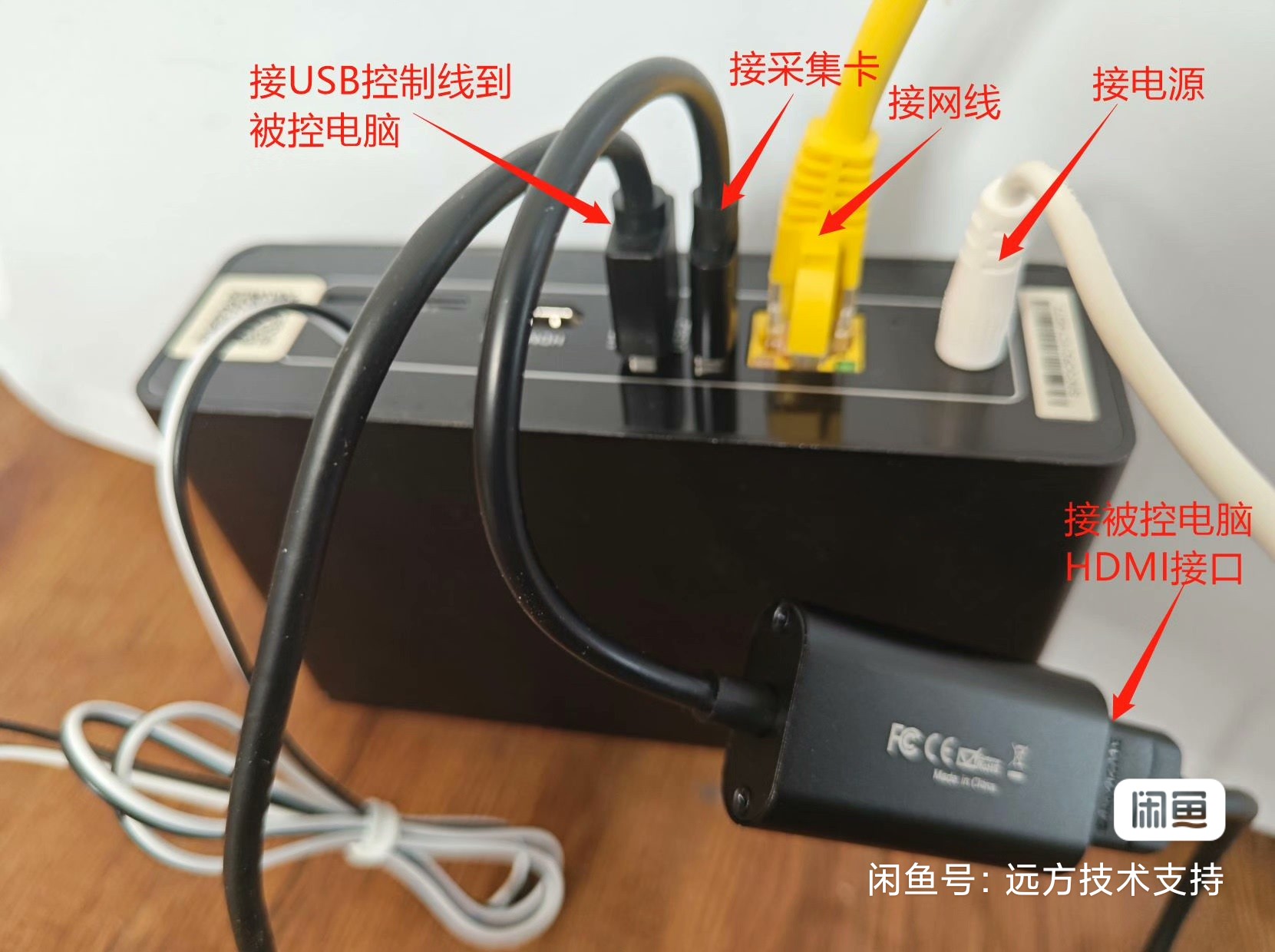

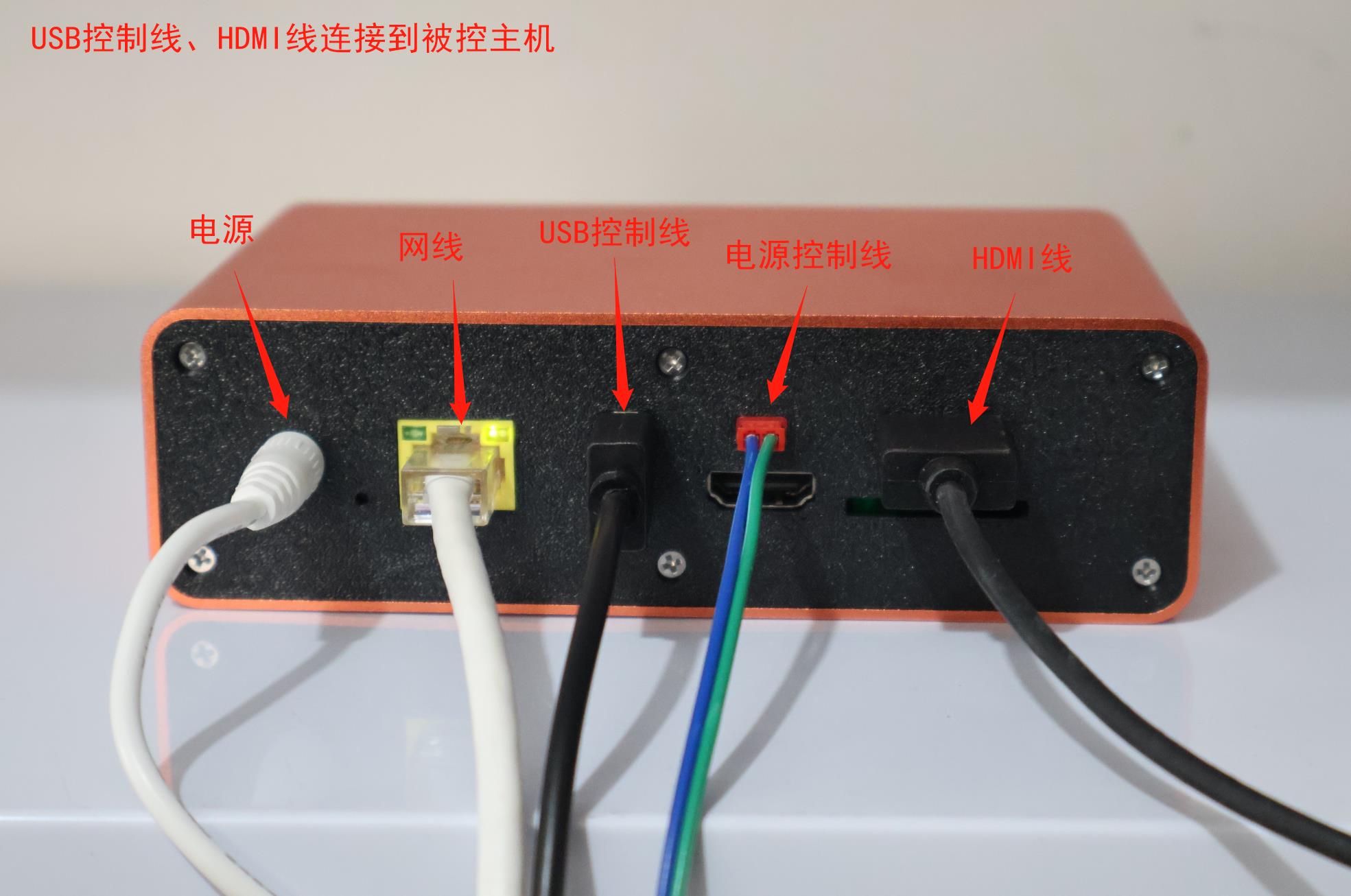

如上图，pikvm线连接好之后通电等待前面板显示绿灯，然后在路由器后台找到主机名为one-cloud之后在浏览器中输入ip地址访问，如果路由器还是没有出现ip或者无法打开路由器后台，可以使用接显示器或者网络扫描的方式找到pikvm的ip地址
1、重要说明
初始WEB和VNC账号密码都为 admin/admin且同步，root用户密码默认为 1234
ssh默认端口：22
web默认端口：80，443
vnc默认端口：5900
2、如何切换到root用户
3、如何设置静态IP？
需先切换到root用户操作
nano /etc/systemd/network/99-eth0.network
[Match]
Name=eth0
[Network]
#DHCP=yes
Address=192.168.6.8/24
Gateway=192.168.1.1
DNS=192.168.1.1
[Link]
MACAddress=B6:AE:B3:21:42:0C4、如何修改MAC地址
需先切换到root用户操作，执行以下命令将生成随机MAC地址，最后将执行reboot命令重启系统
MAC="$(echo 2a:01:`openssl rand -hex 4 | sed 's/\(..\)/\1:/g; s/.$//'`)"
echo $MAC
sed -ie "s/MACAddress=B6:AE:B3:21:42:0C/MACAddress=$MAC/g" /etc/systemd/network/99-eth0.network
reboot5、如何修改后台登录密码
需先切换到root用户操作
kvmd-htpasswd set admin
#输入密码
#重启服务，使修改生效
systemctl restart kvmd kvmd-nginx6、ATX电源控制
8、重刷固件
One-KVM固件更新或者系统出错使用
刷机工具以及刷机包文件下载地址
此处内容需要评论回复后（审核通过）方可阅读。

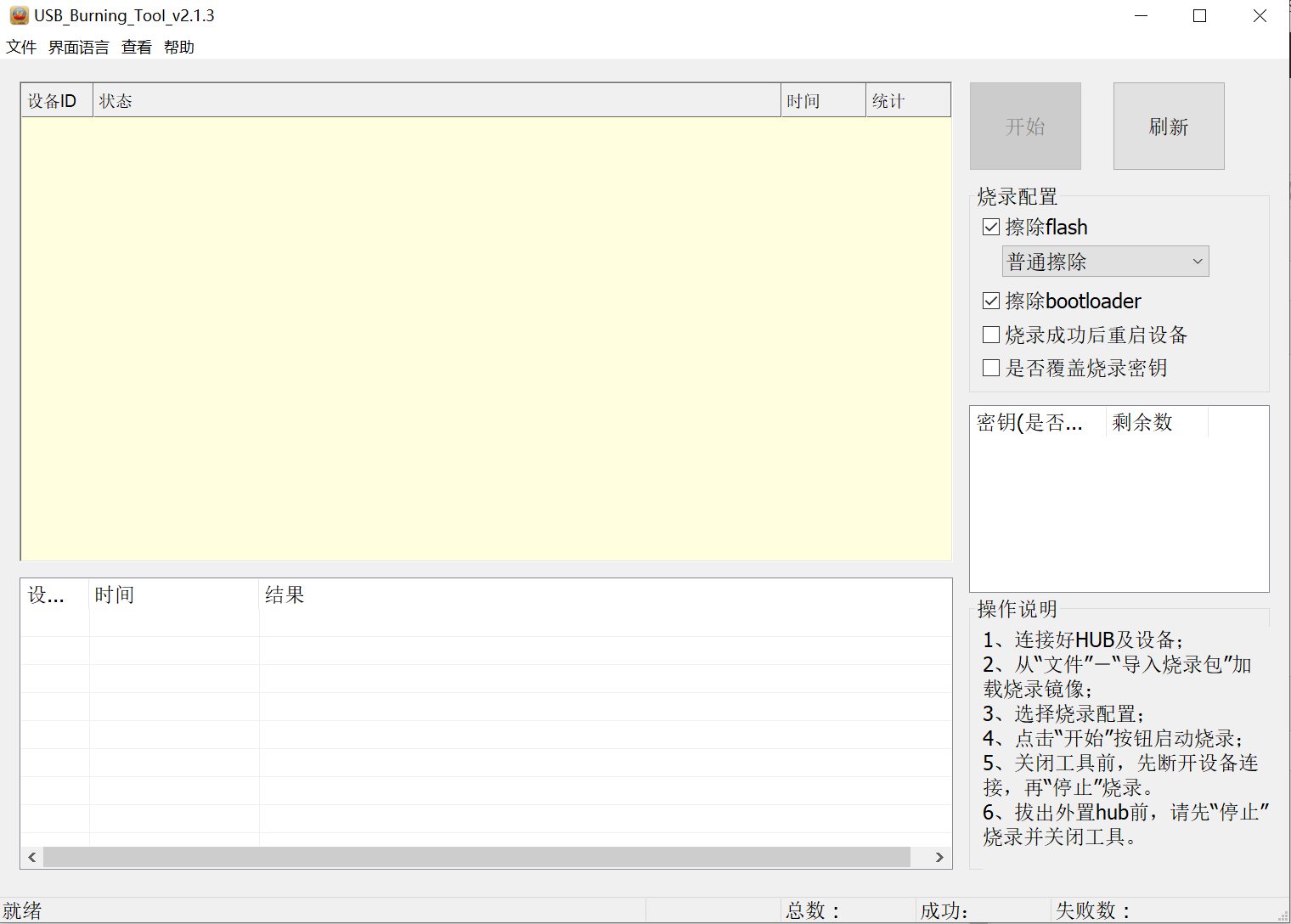

首先安装烧录软件
将下载的固件解压，导入烧录工具
插上usb公对公的线，一头插在电脑上，另外一头插在玩客云靠近HDMI的USB口，然后找个牙签或者顶针插入玩客云背面小孔，接着插上电源，出现连接成功后点击开始即可
5 条评论
使用usb继电器，按下电源控制，提示driver offline:
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => USBRELAY_HID
2025-02-11 09:42:04,052 INFO reaped unknown pid 16204 (exit status 1)
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => Traceback (most recent call last):
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 73, in
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => main()
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 69, in main
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => send_command(device_info, id, onoff)
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 36, in send_command
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => device.open(device_info['vendor_id'], device_info['product_id'])
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "hid.pyx", line 143, in hid.device.open
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => OSError: open failed
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => Traceback (most recent call last):
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 73, in
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => main()
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 69, in main
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => send_command(device_info, id, onoff)
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "/etc/kvmd/custom_atx/usbrelay_hid.py", line 36, in send_command
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => device.open(device_info['vendor_id'], device_info['product_id'])
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => File "hid.pyx", line 143, in hid.device.open
kvmd.plugins.ugpio.cmd ERROR --- CMD(reset_press) => OSError: open failed
kvmd.plugins.ugpio.cmd ERROR --- Can't run custom command [ /etc/kvmd/atx.sh reset ]: RuntimeError: Custom command error: retcode=1
kvmd.apps.kvmd.ugpio ERROR --- Can't perform pulse of Output(reset_button, driver=CMD(reset_press), pin=0) or operation was not completed: driver offline
刷机感谢！！
需要刷机，感谢感谢
nano /etc/systemd/network/99-eth0.network
设置完了IP地址 如何保存?
先按ctrl+o，回车保存。再按ctrl+x，回车即可
